What Is a Terminal Block?

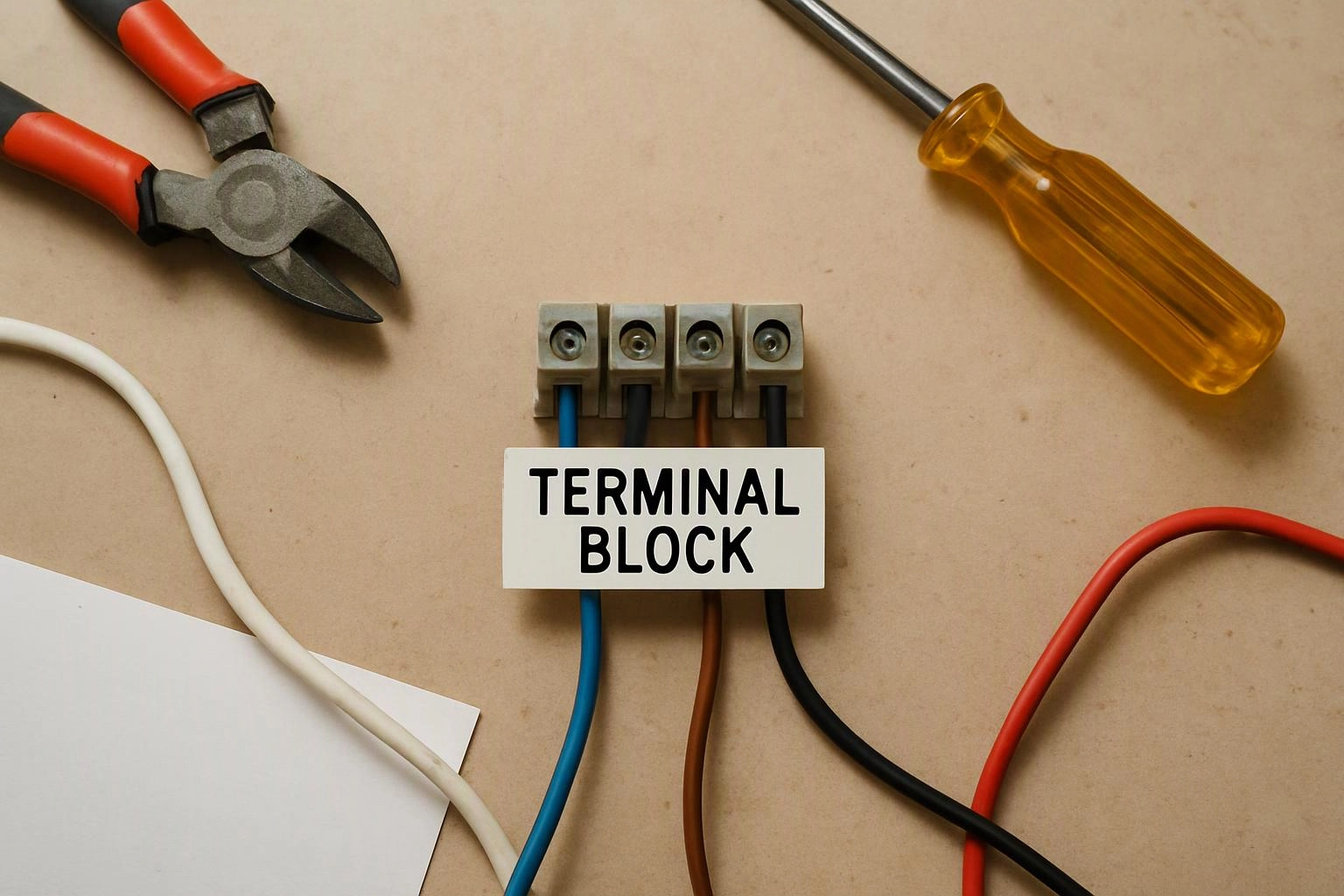

A Terminal Block is an electrical connection device that joins wires to equipment or other circuits through separate conductive terminals. An insulating body holds the terminals in place and helps keep each connection organized. Terminal blocks support orderly wiring in control panels, distribution equipment, machinery, and other fixed electrical installations.
Quick Facts About Terminal Block
Category
Electrical connection component
Used for
Organizing wire terminations
Common confusion
Not a wire nut or junction box
Also called
Terminal Strip, Barrier strip
Often discussed with
Commercial Electrical Installation
Key Takeaways About Terminal Block
- Separate terminals keep connected wires organized.
- Screw, clamp, or spring contacts hold conductors in place.
- A terminal block is not the same as a wire nut.
How Terminal Block Works

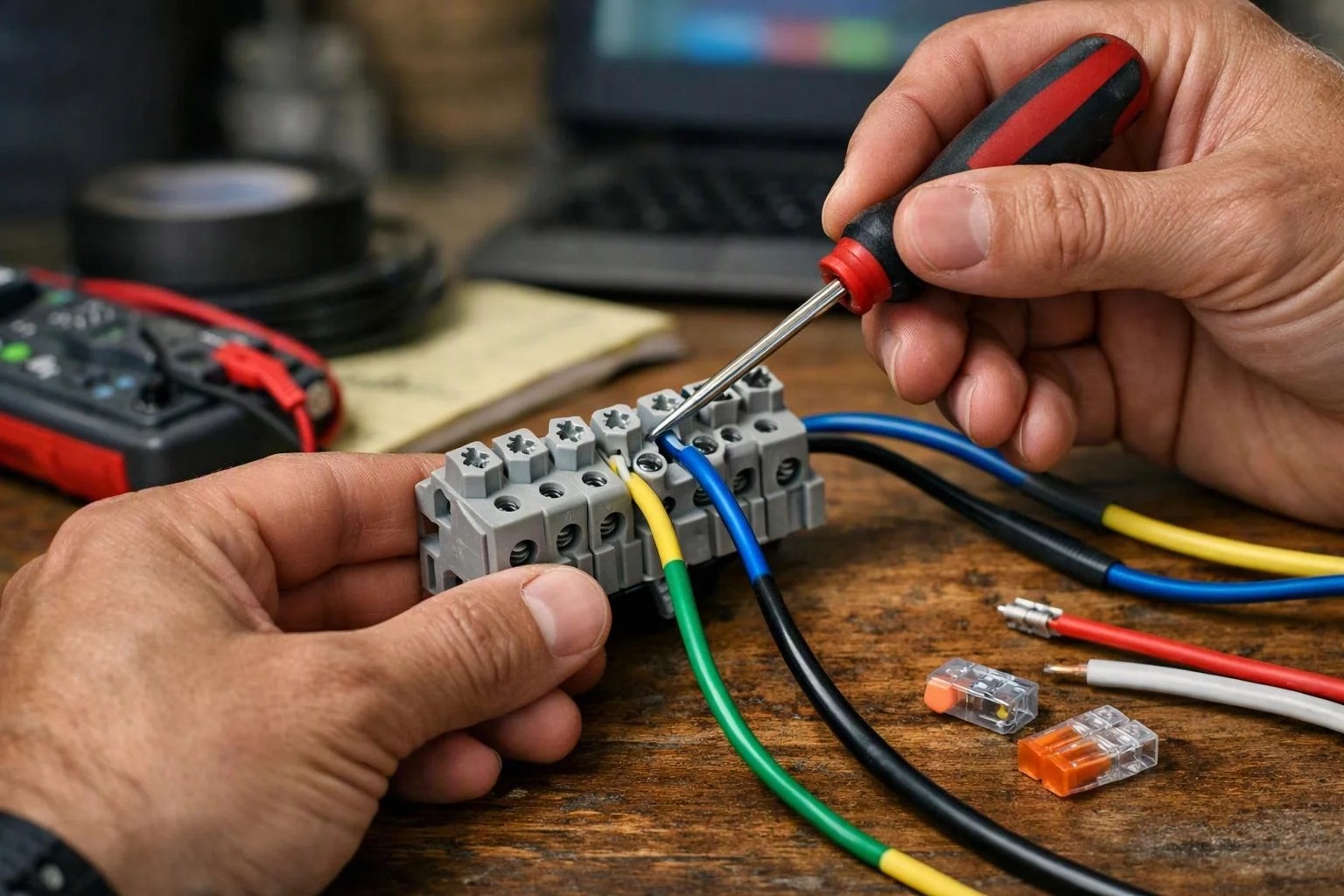

A terminal block receives a conductor at each terminal and connects that conductor to an internal metal bar or contact. A screw, clamp, or spring mechanism holds the conductor against the contact. An insulating body separates nearby terminals and supports orderly routing inside an enclosure.
Related glossary terms: Busbar, Enclosure, Junction Box.
Terminal blocks may connect field wiring to control devices, power equipment, or other sections of a circuit. Markings help identify each connection during installation and service. Some designs include a commoning bar that links selected terminals, while other designs keep every terminal electrically separate. The correct block depends on conductor type, connection method, voltage class, current capacity, and available enclosure space.
From the Service Electric team
When we install or inspect terminal blocks, we check conductor seating, terminal identification, and the condition of the insulating body. We also trace each connection against the equipment layout so field wiring lands on the intended circuit. Our team looks for loose hardware, damaged contacts, and signs of heat at existing terminations.
Terminal Block in Practice: A Real-World Example
A commercial control panel may use a terminal block to connect field wiring from a motor to the panel controls. Each conductor lands on a labeled terminal, which makes testing and future service more orderly.
