What Is a Busbar?
Busbar is a conductive metal strip or assembly inside electrical equipment that distributes power to connected circuits. A busbar provides a common connection point for breakers, feeders, or other conductors. Panels may contain separate busbars for energized conductors and neutral connections, depending on the equipment design and electrical system.
Quick Facts About Busbar
Category
Electrical panel component
Used for
Shared power distribution
Common confusion
Mistaken for a breaker or terminal block
Also called
Bus Bar
Often discussed with
Electrical Panel Repair
Key Takeaways About Busbar
- Busbars use solid conductive material for shared power distribution.
- Panel breakers connect to the busbar through designed contact points.
- A busbar is not the same as a circuit breaker.
How Busbar Works

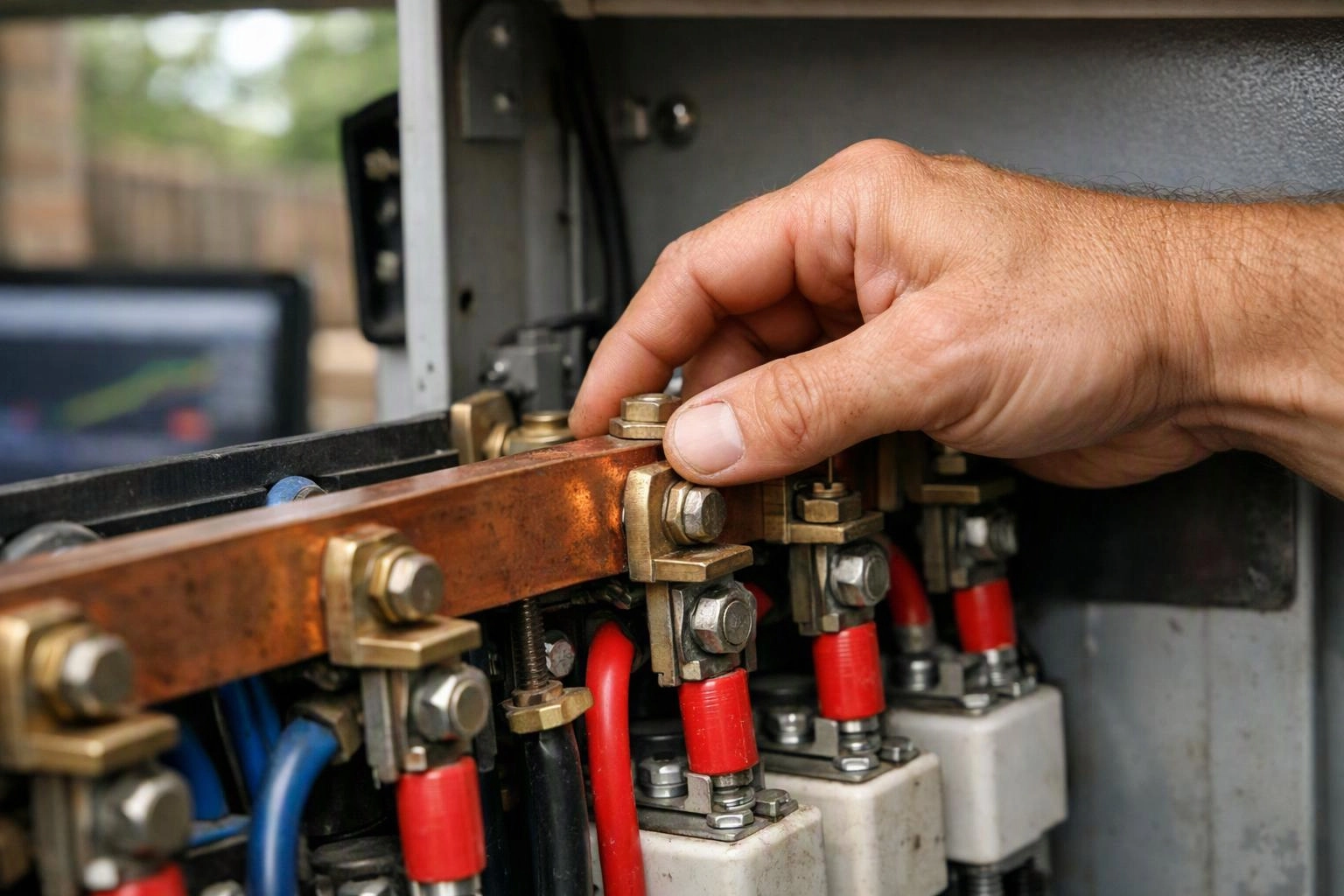

Busbar works as a shared conductive path inside a panel or other electrical enclosure. Incoming power connects to the busbar, and circuit breakers attach at designated positions. Each breaker then sends power through its connected branch circuit. The busbar carries current between the supply connection and those breaker positions.
Related glossary terms: Circuit Load, Terminal Block, Wire Gauge.
Busbars are shaped and supported for the equipment they serve. Insulation, spacing, and enclosure design separate energized parts from neutral or grounding connections where the panel requires that arrangement. A damaged contact surface can create heat, discoloration, or unreliable power at a breaker connection. Circuit breakers and terminal blocks connect to related points, but each component performs a different electrical function.
From the Service Electric team
When we inspect a busbar during panel repair, we look for heat damage, loose connections, corrosion, and poor contact between the busbar and breaker. We also check whether the panel design supports the installed breaker and conductor arrangement. These findings help determine whether a connection can be repaired or requires component replacement.
Busbar in Practice: A Real-World Example
A residential panel may lose power on one circuit after heat damages the busbar contact beneath its breaker. The repair may involve examining the affected connection, checking nearby components, and replacing damaged panel parts when the equipment design requires it.
